LED Linear High Bay Fixture

This LED Linear High Bay fixture is a versatile luminaire for applications ranging from warehouse lighting to retail big box stores. This slim-profile high bay is constructed with aluminum extrusions and castings for superior heat dissipation, and can be suspended with aircraft cables, or surface mounted. It is available in four sizes with two different lenses producing 130 lumens (frosted lens) or 140 lumens (clear lens) per watt, and qualifies for DLC Premium rebates. Occupancy and daylight controls, as well as emergency backup batteries, are available options to meet code requirements.

LED Linear High Bay Fixture 130-140 Lumens per Watt - Surface or Cable Mounts

LED Linear High Bay Fixture 130-140 Lumens per Watt - Surface or Cable Mounts

LED High Bay and Advanced Lighting Controls

Advanced lighting controls are available as an option using 360 degree microwave sensors for effective coverage and penetration of obstacles. Either On-Off or Dimming controls are available factory integrated into the fixture. The dimming controls offers step dimming to lower light levels in the space when unoccupied and can turn off the fixture after a set period. The On-off controls turn off the fixture after a set period. These sensor are programmed by DIP switches making it quick and easy to setup the fixtures before installation.

Watts 100W, 165W, 210W, 300W Rebates DLC Premium
Lumens 13,000 lm - 42,000 lm Warranty 5 Years
Lumens/ Watt 130 (Frosted) / 140 (Clear) lm/ W L-70 >50,000 Hrs.
CCT 4,000K, 5,000K, 5,700K CRI >80
Options 0-10V, Controls, Emergency Battery Volts 100-277 VAC 277-480 VAC

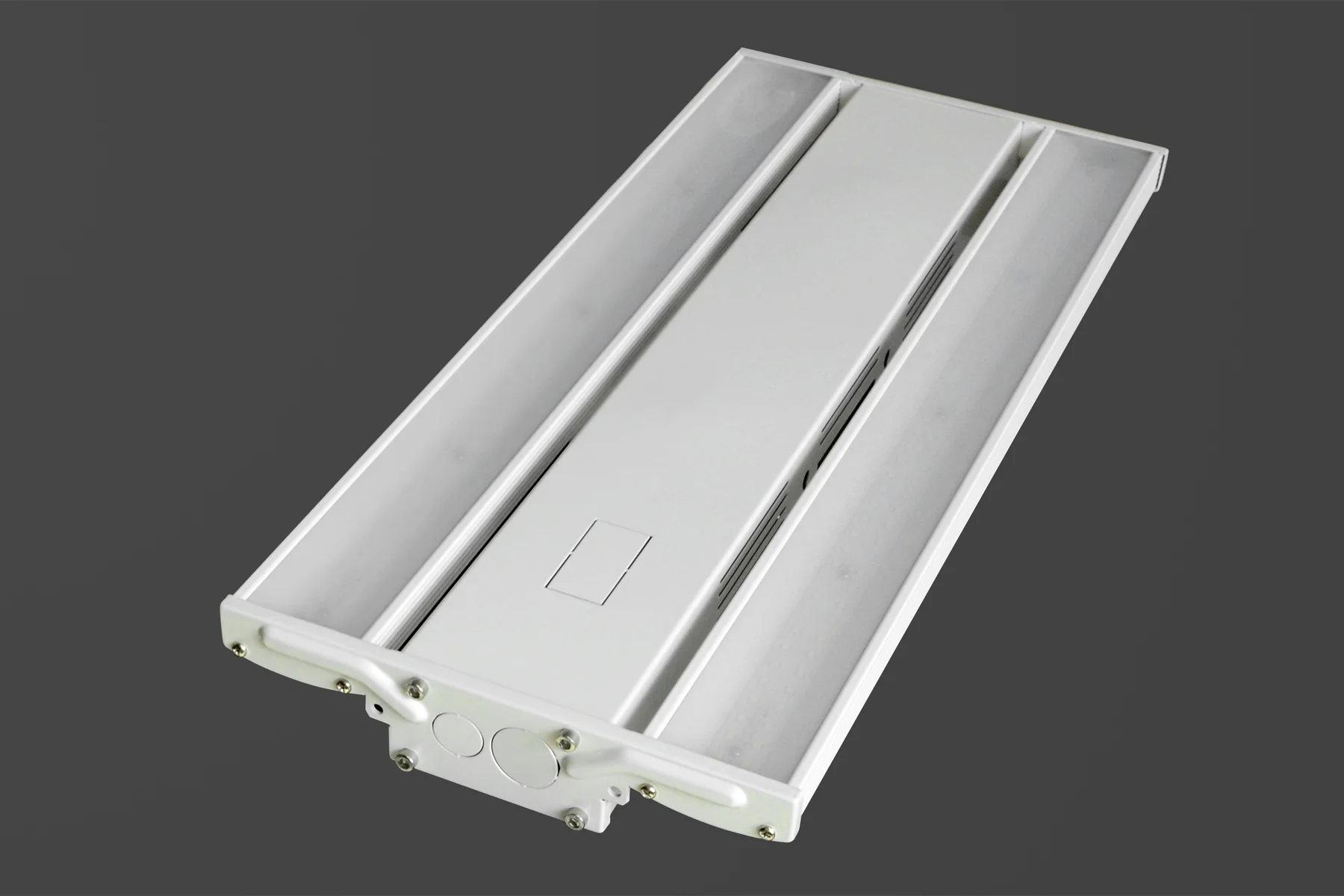

100W Linear High Bay - Low Profile

100W Linear High Bay - Low Profile

High Performance LED High Bay

This LED Linear High Bay luminaire is an energy saving solution for high ceiling environments found in warehouses, industrial spaces, production facilities, hangers, gymnasium, atrium and other large spaces. These linear high bay fixtures are ideally suited for areas with ceilings that are between 20 and 50 feet and that desire high quality illumination. These fixtures have very high lumen output ranging from 13,000 lm to 42,000 lm, with very high CRI values of over 80. These lights produce much higher quality of light than conventional fluorescent fixtures, HPS, or metal halide (MH) fixtures. Unlike conventional high bay fixtures, these luminaires require no routine re-lamping, often a very costly maintenance activity in high bay spaces. The fixtures are designed to illuminate features with sharp accurate color to increase visibility, which is important for safety and security.

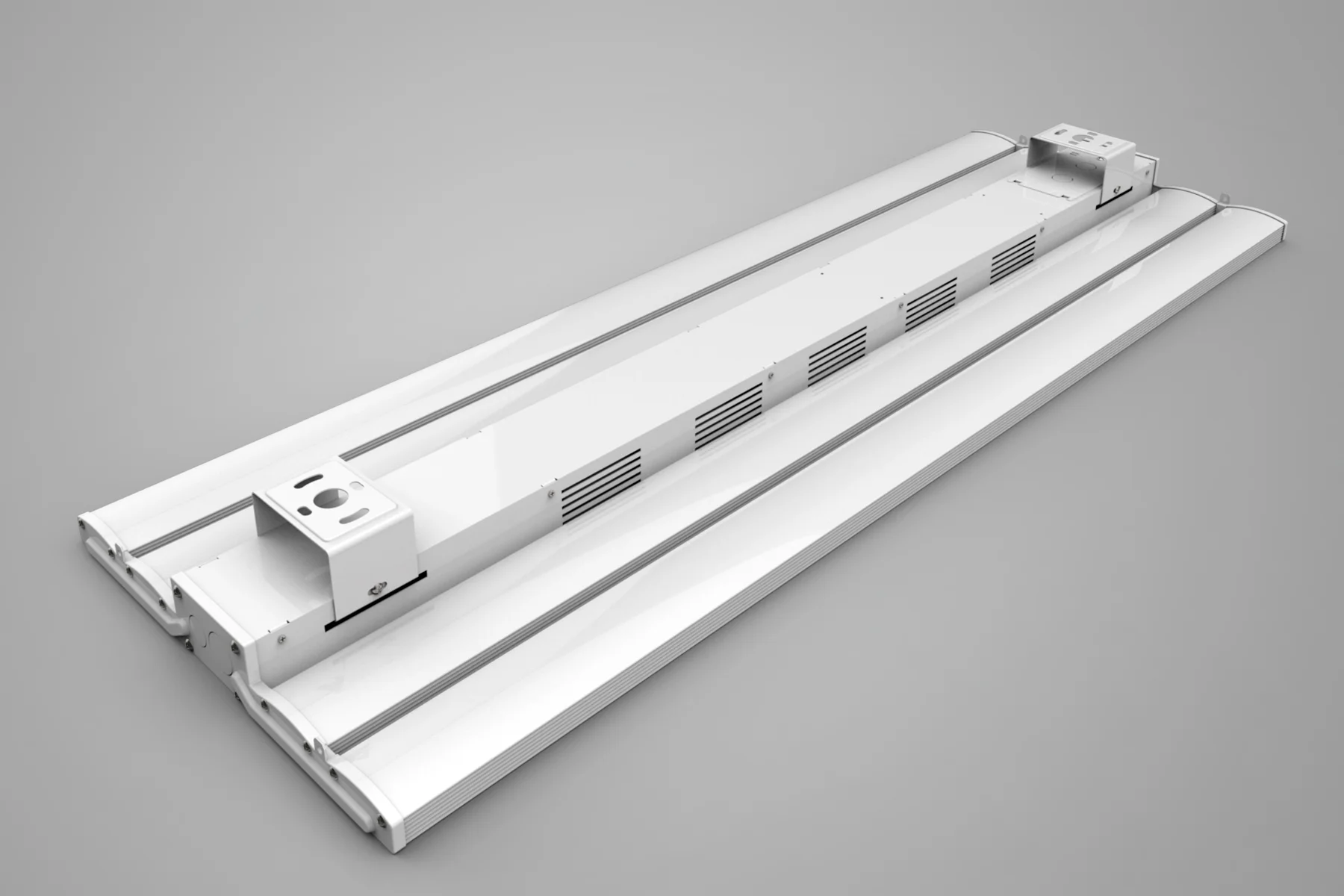

300W Linear High Bay with Surface Mounts

300W Linear High Bay with Surface Mounts

Dimming Controls and Sensors

These linear high bay fixtures offer advanced lighting controls that save substantial amounts of energy and while providing required levels of illumination when people are present. Two control options are available using advance microwave detectors to penetrate obstacles and provide sensitive detection. These sensors are all set via a set of DIP switches for ease of programming while the fixture is the ground, and does not require any special tools or remote controls to set the control features.  This LED Linear High Bay can be set for on-off operation when movement is detected, or can set to a full on with motion detection, and dimming after a hold time that can be set between 10 seconds to one-hour. Daylight sensing is also available at various brightness levels from 30-100 lux for twilight operations, and 5 or 15 lux for in darkness applications.
